Product details
Description

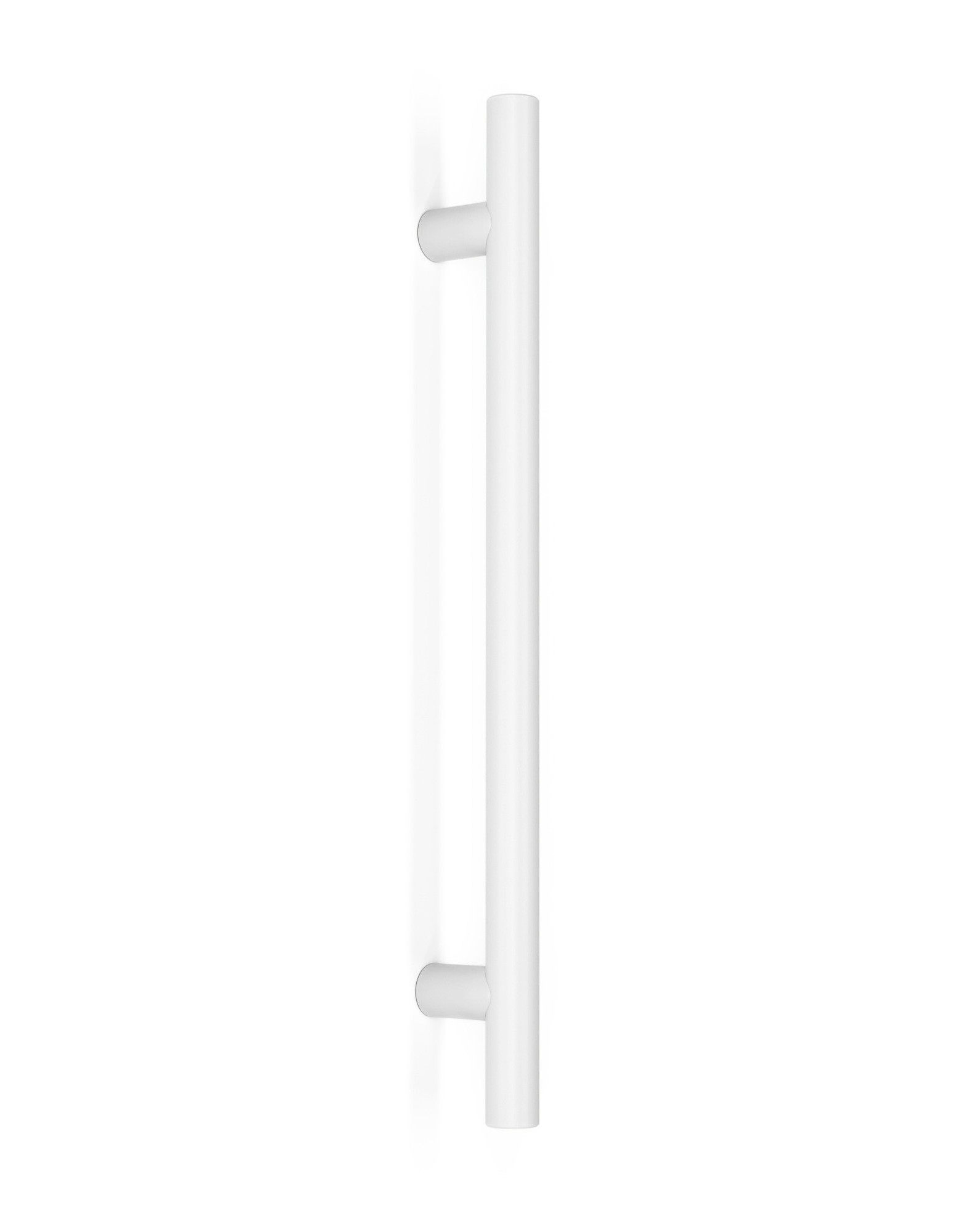

Strongar Hardware's highly superior Pro-Line Series One-sided Ladder Style Door Pull Handle with Concealed Surface Mounts, Decorative Thru-Bolt End Caps and Countersunk Thru-Bolt Washers are made of 304 grade materials and are suitable for wood, glass, fiberglass and metal doors. Our highly-engineered materials and beautiful surface finishing allow for installation in both indoor and outdoor environments. You can rest assured that this Door Handle Pull will be easy-to-install, and will serve its purpose beautifully for many years.
-
Finish: Bronze Powder Coated
-
Door Type: Wood, glass, fiberglass and metal doors
-
Material: Stainless steel 304 grade
- Tubing: 1", 1-1/4", 1-1/2" diameters, 16-gauge, solid post-mounts
-
Quantity of handles: One
-
Usage: Commercial / Residential
-
Application: Interior and exterior doors
-
Standards: Provides sufficient clearance (1-1/2" min.) as per ADA requirements for accessibility
-
Customization Requests: Please contact us at 1-800-259-7254 or email us at info@strongarhardware.com
Specifications
| Handle Length (A) | Diameter (B) | Center-to-Center (C) | Projection (D) | Clearance (E) |
|---|---|---|---|---|
| 12 inches | 1" | 6" | 2-7/8" | 1-7/8" |
| 16 inches | 1" | 10" | 2-7/8" | 1-7/8" |
| 18 inches | 1" | 12" | 2-7/8" | 1-7/8" |
| 24 inches | 1" | 18" | 2-7/8" | 1-7/8" |
| 32 inches | 1" | 26" | 2-7/8" | 1-7/8" |
| 36 inches | 1" | 30" | 2-7/8" | 1-7/8" |
| 48 inches | 1" | 42" | 2-7/8" | 1-7/8" |
| 60 inches | 1" | 54" | 2-7/8" | 1-7/8" |
| 72 inches | 1" | 66" | 2-7/8" | 1-7/8" |
| 84 inches | 1" | 78" | 2-7/8" | 1-7/8" |
| 96 inches | 1" | 90" | 2-7/8" | 1-7/8" |
| Handle Length (A) | Diameter (B) | Center-to-Center (C) | Projection (D) | Clearance (E) |
|---|---|---|---|---|
| 12 inches | 1-1/4" | 6" | 2-15/16" | 1-11/16" |
| 16 inches | 1-1/4" | 10" | 2-15/16" | 1-11/16" |
| 18 inches | 1-1/4" | 12" | 2-15/16" | 1-11/16" |
| 24 inches | 1-1/4" | 18" | 2-15/16" | 1-11/16" |
| 32 inches | 1-1/4" | 26" | 2-15/16" | 1-11/16" |
| 36 inches | 1-1/4" | 30" | 2-15/16" | 1-11/16" |
| 48 inches | 1-1/4" | 42" | 2-15/16" | 1-11/16" |
| 60 inches | 1-1/4" | 54" | 2-15/16" | 1-11/16" |
| 72 inches | 1-1/4" | 66" | 2-15/16" | 1-11/16" |
| 84 inches | 1-1/4" | 78" | 2-15/16" | 1-11/16" |
| 96 inches | 1-1/4" | 90" | 2-15/16" | 1-11/16" |
| Handle Length (A) | Diameter (B) | Center-to-Center (C) | Projection (D) | Clearance (E) |
|---|---|---|---|---|
| 12 inches | 1-1/2" | 6" | 3-3/8" | 1-7/8" |
| 16 inches | 1-1/2" | 10" | 3-3/8" | 1-7/8" |
| 18 inches | 1-1/2" | 12" | 3-3/8" | 1-7/8" |
| 24 inches | 1-1/2" | 18" | 3-3/8" | 1-7/8" |
| 32 inches | 1-1/2" | 26" | 3-3/8" | 1-7/8" |
| 36 inches | 1-1/2" | 30" | 3-3/8" | 1-7/8" |
| 48 inches | 1-1/2" | 42" | 3-3/8" | 1-7/8" |
| 60 inches | 1-1/2" | 54" | 3-3/8" | 1-7/8" |
| 72 inches | 1-1/2" | 66" | 3-3/8" | 1-7/8" |
| 84 inches | 1-1/2" | 78" | 3-3/8" | 1-7/8" |
| 96 inches | 1-1/2" | 90" | 3-3/8" | 1-7/8" |
- Finish: Bronze Powder Coated
- Door Type: Wood, glass, fiberglass and metal doors
- Material: Stainless steel 304 grade
- Quantity of handles: One for a single sided installation
- Usage: Commercial / Residential
- Application: Interior and exterior doors
- Customization Requests: Please contact us at 1-800-259-7254 or email us at info@strongarhardware.com
